Struggling with battery thermal management in your heavy-duty or marine application? You’re not alone. Let’s dive into how Thermal Interface Materials (TIM) can make or break your battery pack’s performance and safety.
A Thermal Interface Material (TIM) is a heat-conductive substance applied between battery cells and cooling components. It fills microscopic air gaps, drastically reducing thermal resistance. This ensures efficient heat dissipation, extending battery life and preventing catastrophic thermal runaway.
Want to know how to select the right TIM for your specific application? I’ve broken down everything you need to know about integrating these crucial materials below.
What is a thermal interface pad?
A thermal interface pad is a pre-formed, solid square or rectangle of heat-conducting material. You will typically find these placed directly between a battery module and a heat sink or liquid cold plate.
Unlike messy pastes or liquid-dispensed materials, thermal pads come in specific thicknesses and are extremely easy to handle during assembly.
They are engineered to be soft and compliant. When you compress them, they conform perfectly to the uneven surfaces of battery cells and metal enclosures. This compression squeezes out insulating air pockets, creating a seamless bridge for heat to travel from the hot battery cell to the cooling system.
If you are dealing with battery systems built for real-world operation, a high-quality thermal pad is often the first line of defense against overheating.
What is TIM in a battery pack?
TIM stands for Thermal Interface Material, and in a battery pack, it is the unsung hero of the entire thermal management system.

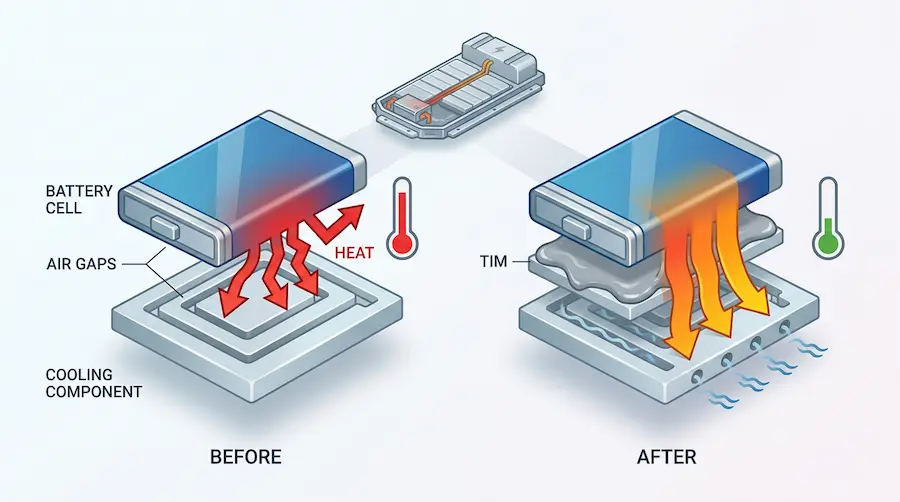

When you look at a battery pack design, you usually see lithium-ion cells sitting on top of an aluminum cooling plate. To the naked eye, both the bottom of the battery and the surface of the cold plate look perfectly flat. But at a microscopic level, they are covered in jagged peaks and valleys.
When these two surfaces touch, they only make physical contact at the highest peaks. The valleys remain filled with air. Since air is a terrible conductor of heat, this creates a massive thermal bottleneck.
TIM is the broad category of materials used to fill those microscopic valleys.
As an engineering-driven integration partner, we know that mechanical, thermal, electrical, and control systems must be developed as one coordinated solution. The TIM is the literal physical bridge that connects the mechanical structure with the thermal management system. Without it, even the most advanced liquid cooling setup will fail to keep your cells at their optimal operating temperature.
What are thermal interface materials made of?

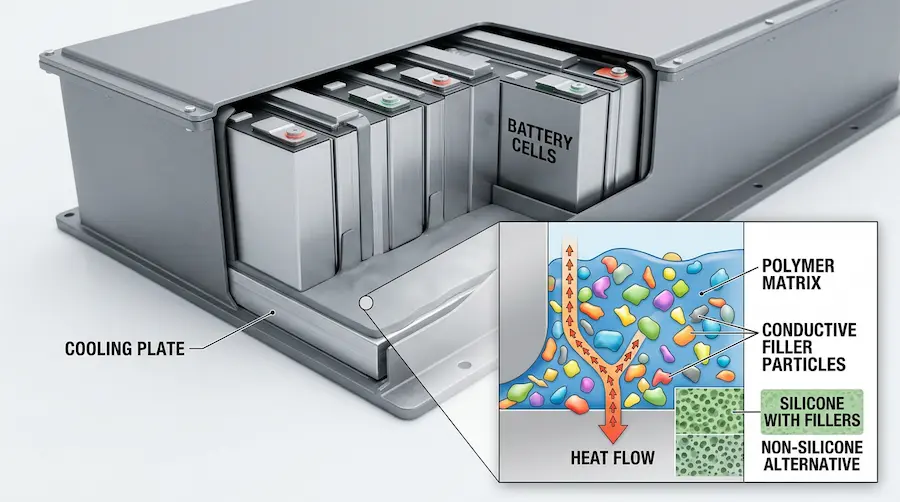

The base matrix of most thermal interface materials is typically a polymer. The most common choice is silicone because it is incredibly stable across wide temperature ranges and naturally soft.
However, silicone on its own does not conduct heat well. To make it thermally conductive, engineers load this polymer base with highly conductive ceramic or metallic filler particles.
Common fillers include:
Alumina (Aluminum Oxide): Cost-effective and provides good thermal conductivity with excellent electrical insulation.
Aluminum Nitride: Offers higher thermal conductivity for more demanding high-power applications.
Boron Nitride: Extremely high thermal performance, though it comes at a premium price.
In some sensitive electronic applications, silicone can release volatile gases over time (outgassing), which might coat nearby optical or electrical components. For these specific cases, non-silicone bases like polyurethane or acrylic are used instead.
What are the examples of Thermal Interface Material?
There is no one-size-fits-all when it comes to TIMs. The right choice depends entirely on your packaging constraints and production scale.
Here are the most common examples used in EV and industrial battery packs:
Thermal Pads: As mentioned earlier, these are pre-cut, solid pads. They are great for prototyping and low-volume production because they require no specialized dispensing equipment.
Liquid Gap Fillers: These are two-part liquid materials that cure into a soft elastomer after being dispensed. They are highly favored in high-volume automotive production because they can conform to highly complex, variable gaps.
Thermal Pastes and Greases: These offer excellent thermal resistance because they can be applied in ultra-thin layers. However, they can dry out or “pump out” over time due to vibration and thermal cycling.
Phase Change Materials (PCMs): These materials are solid at room temperature but melt into a liquid when the battery heats up. This allows them to fill microscopic gaps perfectly when the battery is under load, and solidify when it cools down.
Thermal Adhesives: Sometimes you need a material that not only transfers heat but also physically bonds the components together. Thermal adhesives do exactly that, providing structural integrity alongside thermal management.
How does the thermal interface materials work in a Battery Pack?

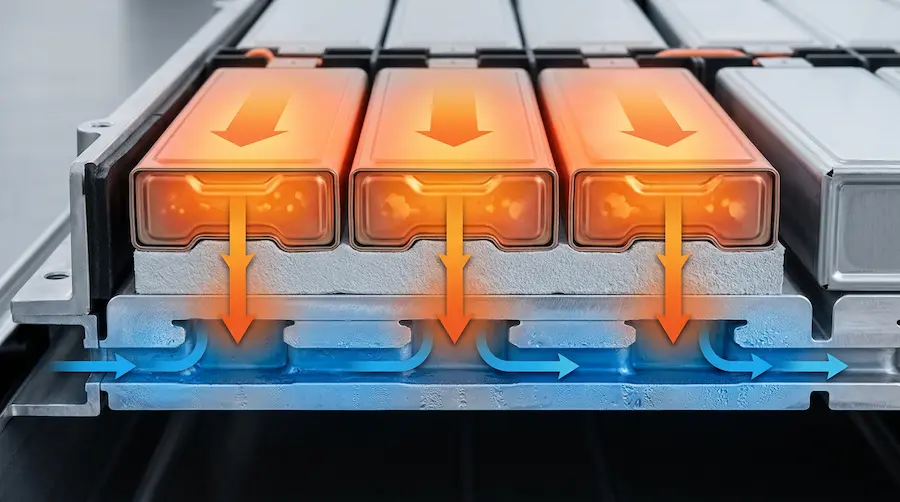

To understand how TIM works, you have to understand thermal resistance. Heat always wants to flow from a hotter object (the battery cell) to a cooler object (the cold plate).
When a battery rapidly charges or discharges, internal internal resistance generates significant heat. This heat travels through the cell casing, hits the TIM, and is rapidly transferred into the precision liquid cold plates.
The TIM works by offering a path of least resistance. Because it is highly conductive, heat moves through it much faster than it would through an air gap.
Once the heat reaches the cold plate, it is carried away by the liquid coolant. This keeps the battery cells within their narrow optimal temperature window (usually between 20°C and 40°C).
By ensuring every cell in the pack has an equal thermal pathway to the cooling plate, TIM helps maintain uniform temperatures across the entire module. This prevents premature degradation of individual cells and maximizes the lifecycle of your entire energy system.
What are the advantages of the thermal interface materials?
The advantages of using the correct TIM go far beyond just cooling.
First, it enables fast charging. High charge rates generate massive amounts of heat. An efficient TIM clears that heat out quickly, allowing OEMs to hit aggressive fast-charging targets safely.
Second, it provides crucial electrical isolation. Battery enclosures operate at dangerously high voltages. A good TIM conducts heat but blocks electricity, preventing short circuits between the live cells and the grounded metal chassis.
Third, TIM acts as a vibration dampener. Heavy trucks have high demands for battery pack durability. A soft thermal pad or cured gap filler absorbs road shocks and high-frequency vibrations, protecting the delicate internal chemistry of the cells.
Finally, it guarantees safety. By eliminating localized hot spots, TIM drastically reduces the risk of thermal runaway—the dangerous chain reaction where one overheating cell causes the entire pack to catch fire.
How to apply thermal interface materials?
Applying TIM in a commercial battery pack is a precise engineering workflow. It is never just a matter of slapping a pad onto a battery.
The process begins long before physical assembly with Simulations. We utilize initial 3D design and thermal simulation to map exactly how heat will flow through the pack. This helps us determine the exact thickness and thermal conductivity required for the material.
Next comes surface preparation. We rely on precision CNC machining to manufacture rugged IP67+ aluminum enclosures and cold plates. The CNC process ensures the mating surfaces are as flat as possible, minimizing the gap the TIM needs to fill.
For the cold plates themselves, we often utilize Friction Welding (specifically Friction Stir Welding). This process seamlessly joins the aluminum plates without adding extra weight or warping the metal, ensuring a perfectly flat surface for the TIM to rest against.
If we are using liquid gap fillers, application requires robotic dispensing equipment. The Flow rate of the dispensing nozzle must be meticulously calibrated. If the flow rate is too high, material spills over; if it is too low, dangerous air voids remain.
Once applied, the battery modules are carefully compressed onto the TIM-covered cold plate. We ensure the compression force meets the exact specifications required to squeeze out air without damaging the cell structures.
Why do we need thermal interface materials?
We need TIM because raw cell chemistry is highly volatile if left unmanaged. Tier-1 cell manufacturers sell you raw modules, but they leave you with a massive engineering headache regarding how to cool them safely.
Without TIM, your battery pack will experience severe thermal gradients. One side of a module might sit at 30°C, while an uncooled hotspot reaches 60°C. This imbalance destroys cell capacity and voids warranties.
Furthermore, TIM is vital for passing global homologation standards. Before any system is deployed, it must survive rigorous testing.
For example, we conduct a Thermal Shock Test to ensure the TIM doesn’t crack, harden, or pump out when rapidly cycled from sub-zero temperatures to extreme heat.
We also perform rigorous Pressure Testing and a Sealing Test on the cold plates prior to TIM application. We must guarantee 100% that no liquid coolant will ever leak onto the TIM or the high-voltage components.
If your heavy-duty vehicle, marine vessel, or off-highway equipment operates in demanding environments, proper thermal integration is non-negotiable. It is the barrier between a reliable, long-lasting machine and a costly, dangerous failure in the field.
What is the best Thermal Interface Material?
So, what is the best TIM? The truth is, there is no single “best” material. The ideal choice relies entirely on rigorous Material Selections tailored to your specific application.
You have to balance thermal conductivity (measured in W/m·K), electrical insulation (dielectric strength), compliance (softness), and cost.
For instance, an electric boat or marine vessel might prioritize complete waterproofing and long-term stability in humid environments. Here, a highly durable silicone thermal pad might be best.
Conversely, an electric truck manufacturer pumping out thousands of units a year might find that a dispensable liquid gap filler offers the best blend of performance and automated manufacturing speed.
Choosing and integrating the right material is a complex process. Battery projects often fail at the integration stage because thermal, mechanical, and electrical systems aren’t developed cohesively.
That is exactly where Astraion Dynamics steps in. We transform your procured raw modules into a rugged, fully certified, plug-and-play energy system. Our core advantage is our “Bring Your Own Cells” partnership model. You control the chemistry, and we master the engineering.
We can help you review your packaging constraints, run the thermal simulations, and build a battery system that is ready for deployment in the harshest environments on earth. Reach out to our engineering team today to start designing a safer, more efficient battery pack.
